Mechanical testing

© Fraunhofer IMWS

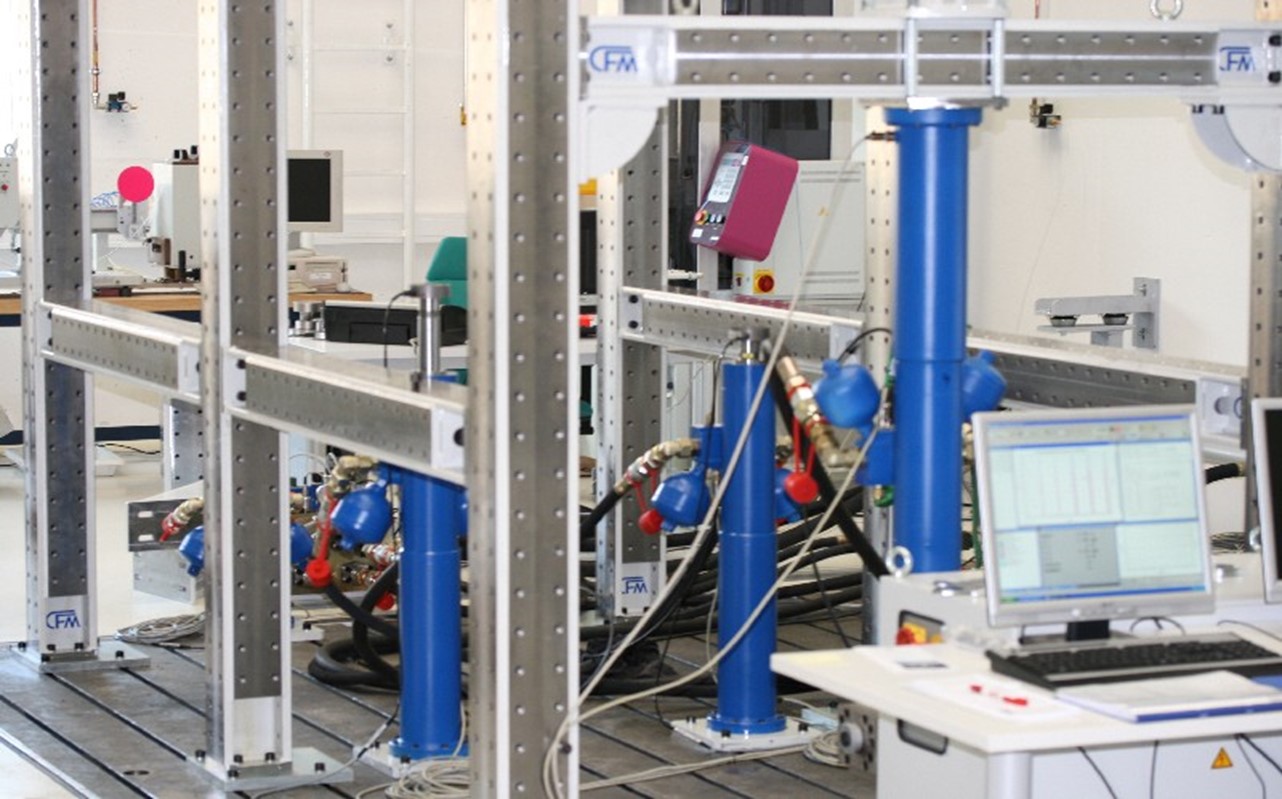

Multiaxial test field
© Fraunhofer IMWS

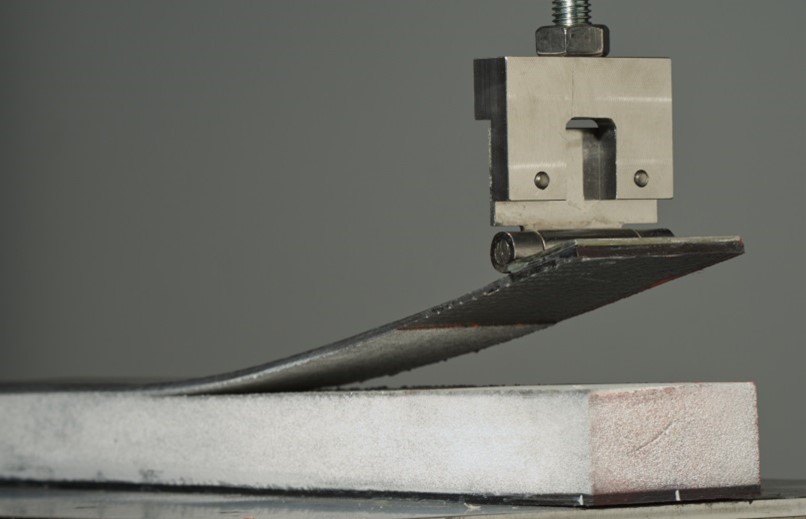

Single Cantilever Beam (SCB) test

In group “Assessment of Composite Systems” the focus is on evaluating the use of polymer-based fibre composites in highly stressed lightweight structures and components. Experimental and numerical methods are used to characterise the mechanical behaviour both under application-related and process-related loads, which are adapted to the special requirements of fibre composites. One focus of the work is the material-mechanical characterisation of materials by means of destructive testing and the evaluation of manufacturing defects and damage (e.g. delamination) with fracture-mechanical methods.



Selected services:

  • Determination of mechanical and physical material properties of fibre composites and sandwich core materials
  • Development and implementation of structural and component tests (e.g. sandwich shells)
  • Evaluation of damage tolerance of fibre composite materials and structures with fracture mechanics methods (e.g. for lifetime prediction of damaged structures)
  • Analysis of service life and ageing behaviour (e.g. under environmental influences)



Overview test equipment

© Fraunhofer IMWS

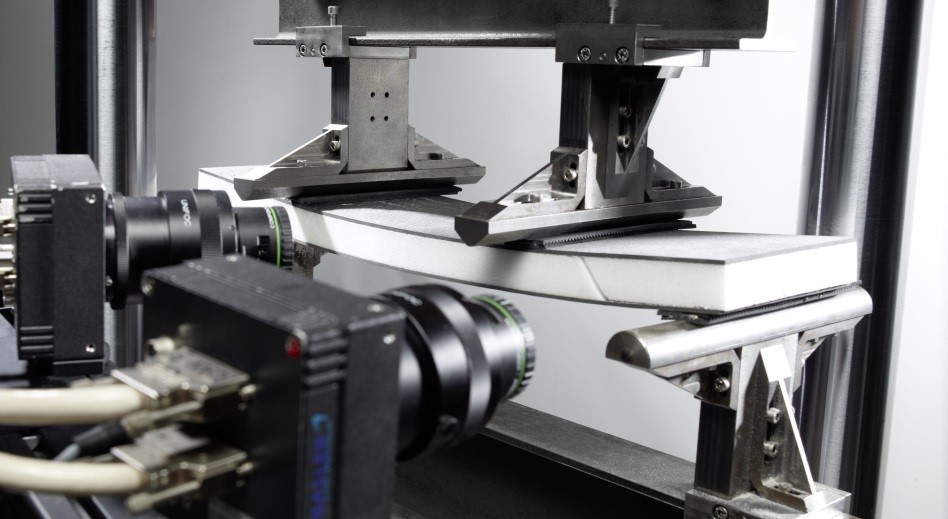

4-point bending test with optical measurement
© Fraunhofer IMWS
Cross-tension test (Multiaxial Test)
© Fraunhofer IMWS

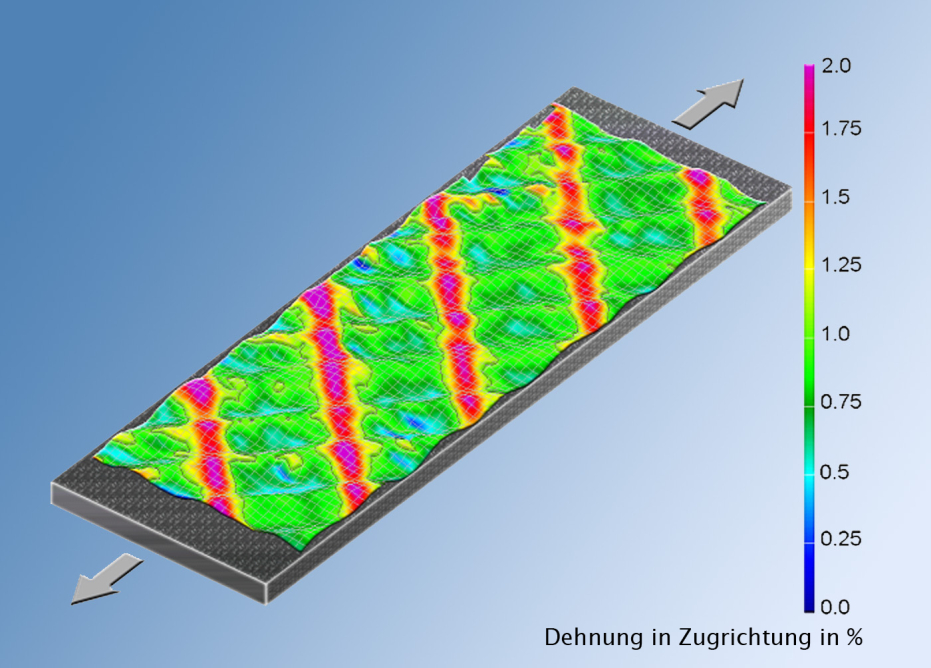

Optical strain field

Test equipment

  • Quasi-static
    - 1 N to 400 kN
    - temperature-controlled
  • Dynamic
    - 1 N to 250 kN
    - up to 10 kN temperature-controlled
    - Maximum test speed of 1 m/s
  • Tension-testing machine
    - 10 N to 10 kN
    - temperature-controlled
  • Multiaxial test field
    - modular / flexible system
    - 7 test cylinders
    - 10 N up to 400 kN
    - up to 250 mm lift
    - up to 200 Hz / up to 1.5 m/s²modulares / flexibles System
  • Drop Weight Impact Testing Machine
    - max. energy 1800 J
    - max. speed 24 m/s
    - temperature-controlled
  • EM testing machines
    - 1 N bis 50 kN
    - bis 1 m Hub
    - temperierbar

Test methods

  • 3-point bending test/ 4-point bending test
  • Tension/ Compression
  • Tension/ Torsion
  • Multiaxial tests

Applications

  • Component testing
    - instrumented
    - multiaxial
  • Fatigue testing
  • Mechanical characterisation
  • Thermal expansion



Would you like to have your component tested by us? Then get in touch with us!

Injection moulded part with local UD-Tape reinforcement

Tensile test on UD laminate in slow motion
